1. Home energy storage system can store excess electric energy in batteries, which can not only reduce the demand on the grid, but also reduce the use of traditional energy sources such as coal burning, which is conducive to reducing carbon emissions.
2. Self-sufficiency: The home energy storage system can make the family self-sufficient, no longer completely dependent on the power grid, increasing the energy independence of the family.
3. Lower Electricity bills: Households can save the most on their electricity bills by buying electricity during off-peak hours and using battery-stored electricity during peak hours.
4. Emergency backup: When the power grid fails, the home energy storage system can provide backup power for the family and maintain the basic power demand 1.
1. Advanced lithium iron phosphate technology.
2, The battery capacity can be free combination.
3, Plug and play, easy to install.
4, High efficiency 98.5%
5. 76.8 kilowatt-hours
6, Long cycle life
1. Renewable energy is more beneficial to human society, and owning a household energy storage system has long-term benefits for households.
2. Household energy storage system provides environment-friendly, longer cycle life and safer lithium batteries for residential energy storage battery system.
1. Bluetooth monitoring is optional
2, 10 years design life
3, Self-heating function is optional
4. Super safe for home use
5. Great energy
6, Intelligent BMS, built-in BMS protection
7, Zero maintenance, no daily maintenance work to save costs
8. Longer life, safer and more durable, making the cycle life of the home solar system longer, safer and more powerful
1, Super security built-in BMS protection
2. High compatibility compatible with most inverters
3, Plug and play easy installation
4, Up to 15PCS parallel support larger capacity
5, All-in-one solution We can provide battery + inverter + solar panel
6. Long life
NO. | Item | parameter | Remarks |
1 | model | LFP-51.2V100Ah | Lithium iron phosphate energy storage battery pack |
2 | Nominal voltage (V) | 51.2V | |
3 | Nominal capacity (Ah) | 100Ah | @0.3 C3A，25℃ |
4 | Cell model | LPF-27135250-100Ah | |
5 | Combination method | （1P16S） | |
6 | Upper limit voltage | 58.4V | 3.65V/monomer |
7 | Upper limit recovery voltage | 54.4V | 3.4V/monomer |
8 | Lower limit voltage | 41.6V | 2.6V/monomer |
9 | Lower limit recovery voltage | 48V | 3.0V/monomer |
10 | Input/output current | ≤100A | ＜30S，25℃ |
11 | Positive terminal | 100A | red |
12 | Negative terminal | 100A | black |
13 | Communication Interface | RJ45 | RS485/CAN/232/not have |
14 | switch | Rocker switch | |
15 | case | ?Sheet metal, white | |
16 | Battery box size | 482（L）*412（W）*355（H）mm( ±2mm） | |
17 | Battery weight | ≈85kg | |

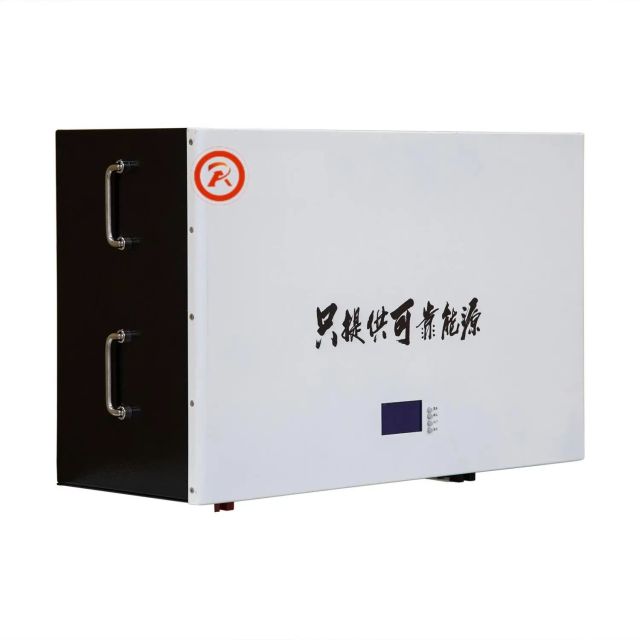

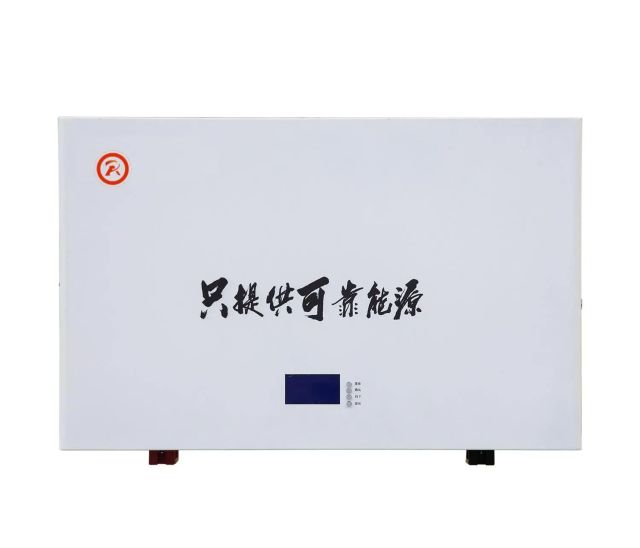

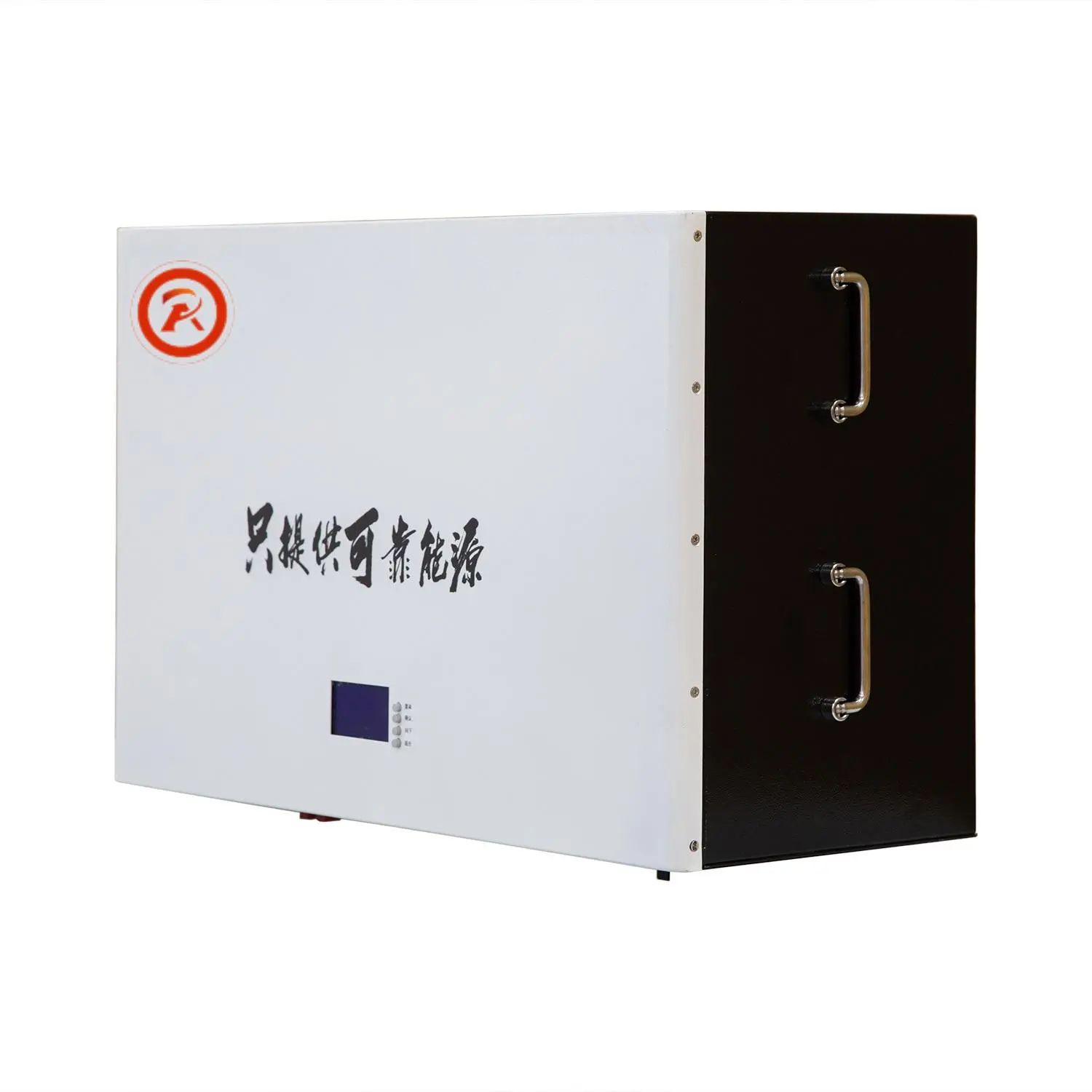

We have developed a variety of wall-mounted solar lithium energy storage systems for your home. The correct system can provide you with better performance.?They vary in terms of voltage, capacity, weight, charging time, etc. To meet more demanding requirements. It is important for you to ask about specifications
