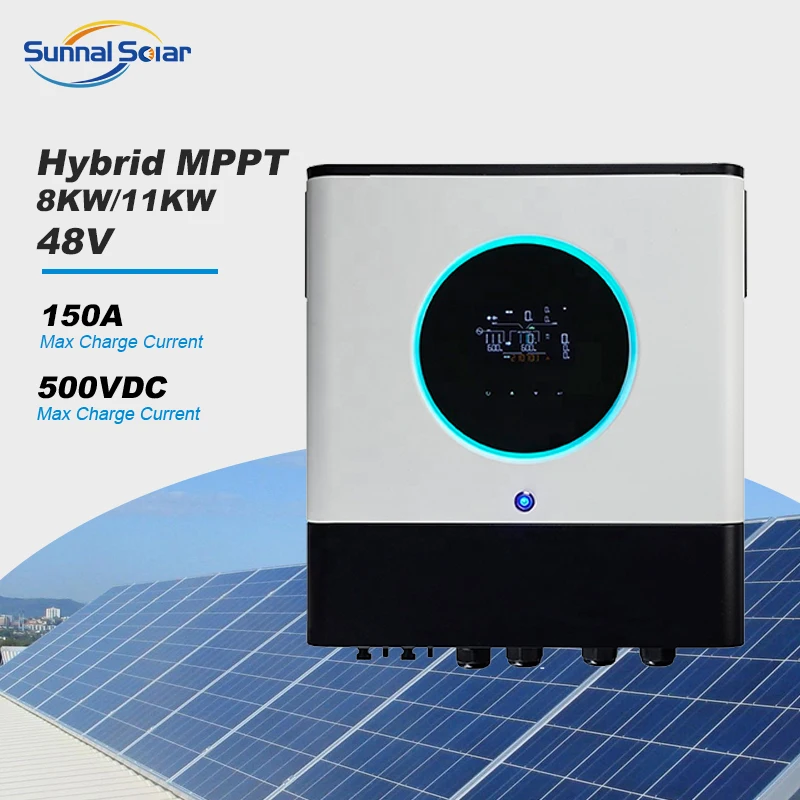

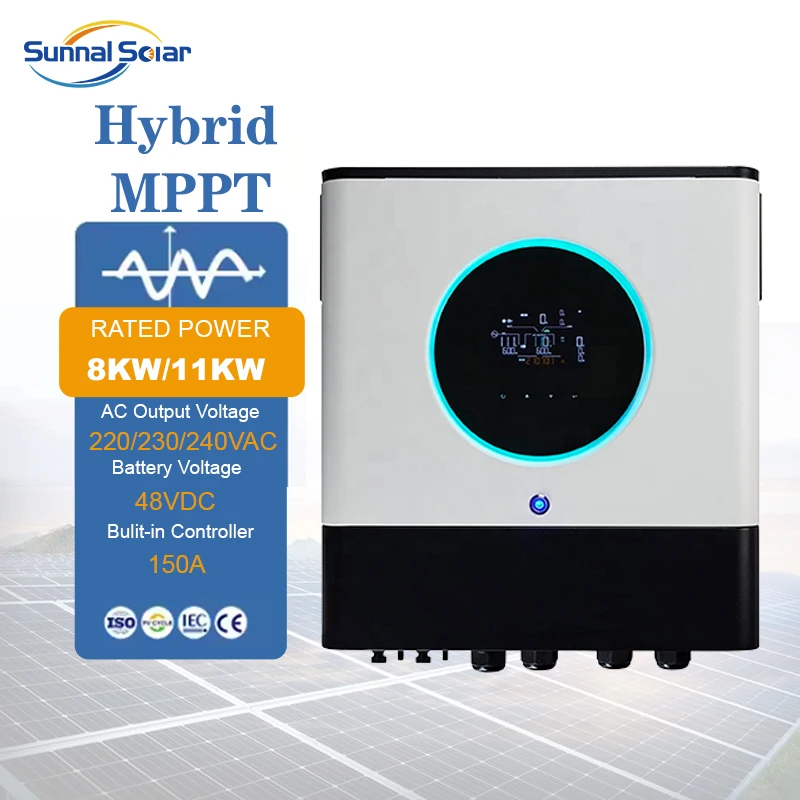

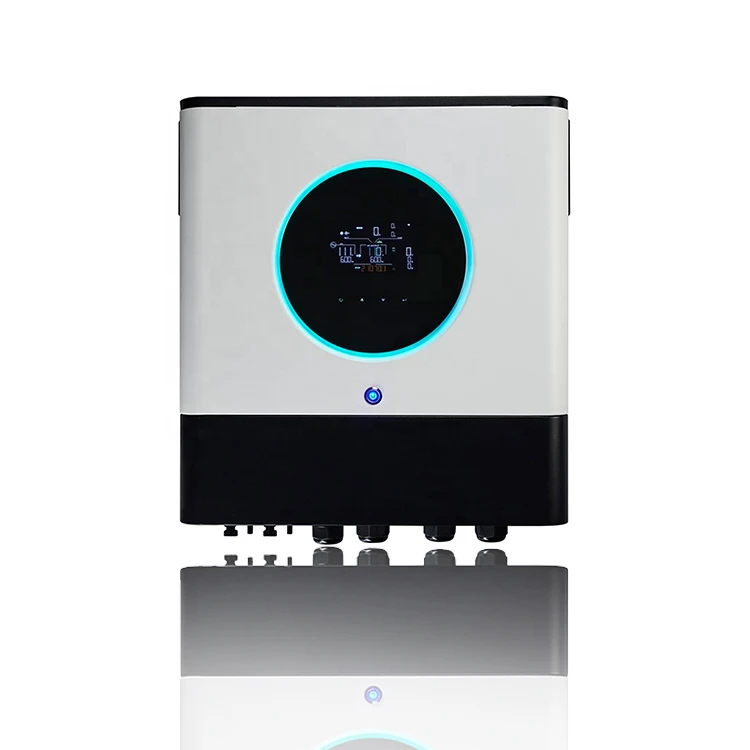

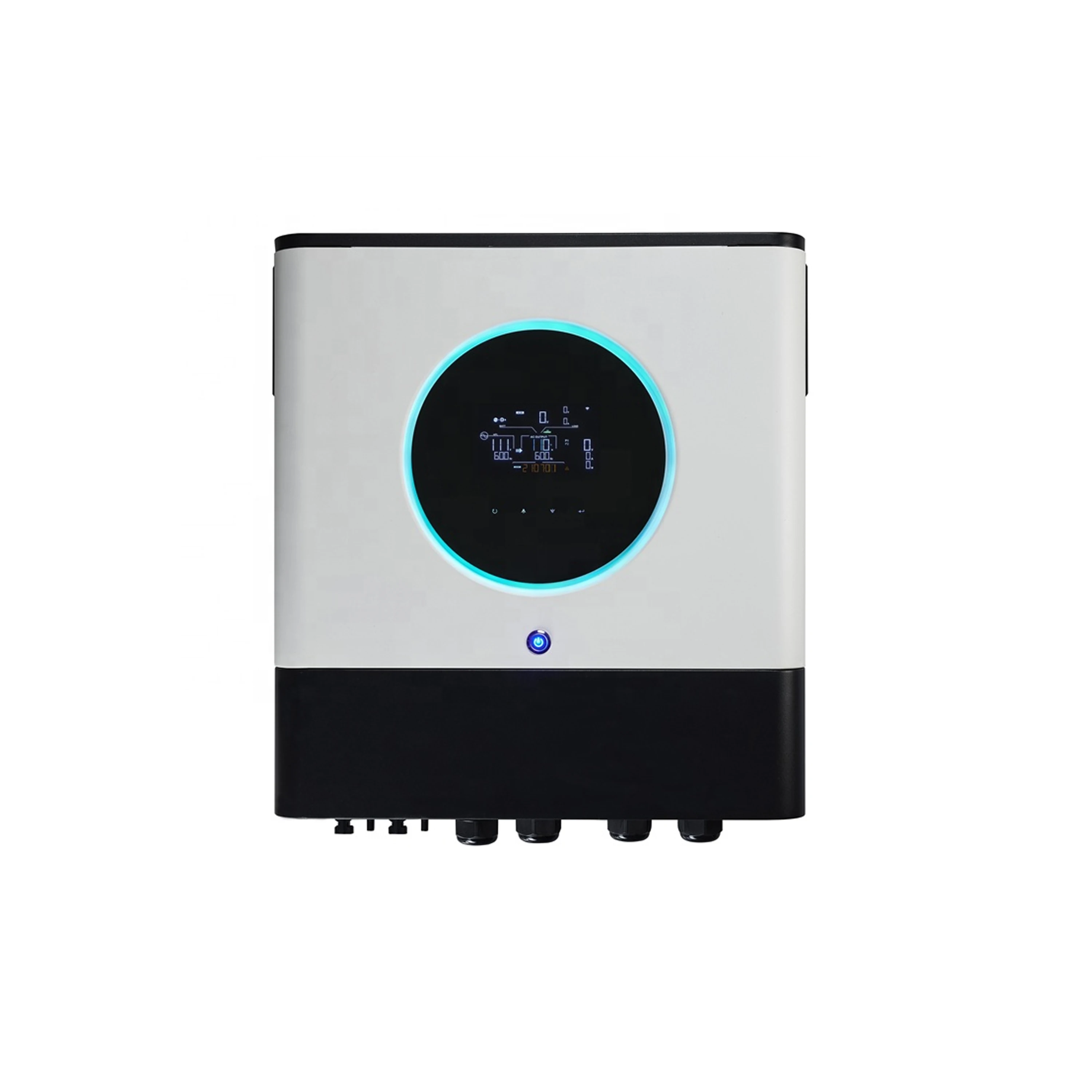

Model | MAX II 8000 | MAX II 11000 | ||
Rated Power | 8000VA/8000W | 11000VA/11000W | ||
Parallel Capability | Yes,6 units | |||
INPUT | ||||
Voltage | 230 VAC | |||
Select-able Voltage Range | 170-280VAC (For Personal computers) 90-280VAC (For Home Appliances) | |||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||
OUTPUT | ||||
AC Voltage Regulation (Batt. Mode) | 230 VAC ± 5% | |||
Surge Power | 16000VA | 22000VA | ||
Efficiency (Peak) | 93% | |||
Transfer Time | 15ms(For Personal Computers), 20ms(For Home Appliances) | |||
Waveform | Pure sine wave | |||
No Load Power Consumption | <70W | |||
DC Voltage (Optional) | 12VDC ± 5%, 100W | |||
BATTERY | ||||
Battery Voltage | 48 VDC | |||
Floating Charge Voltage | 54 VDC | |||
Overcharge Protection | 66 VDC | |||
SOLAR CHARGER & AC CHARGER | ||||
Solar charger type | MPPT | |||
Max PV Array Power | 8000W (4000Wx2) | 11000W (5500Wx2) | ||
MPPT Range @operating Voltage | 90~450VDC | |||
Max PV Array Open Circuit Voltage | 500VDC | |||
Max Solar Charge Current | 150A | |||
Max AC Charge Current | 120A | 150A | ||
Max Charge Current | 150A | |||
PHYSICAL | ||||
Dimension, D x W x H (mm) | 158.4 x 502.5x 530.8 | |||
Net Weight (kgs) | 19 | 21 | ||
Communication Interface | USB/RS232/RS485/WIFI/Dry-contact | |||
OPERATING ENVIRONMENT | ||||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | |||
Operating Temperature | - 10°C to 50°C | |||
Storage Temperature | - 15°C to 60°C | |||
STANDARD | ||||
Compliance Safety | CE | |||
