| FEATURES
* LiFePO4 cells * Safest technology * Long life * Extreme temperature range * Highest energy transfer efficiency * Easy to install * Rarely maintenance |  |
Part Number | WDLFP-48V10K-W |
Energy storage | 10.75KWh |
Capacity | 47372F (210Ah) |
Nominal Voltage | 51.2V/DC |
Maximum Charge Voltage | 57.6V/DC |
Discharge Cut-off Voltage | 44.8V/DC |
ESR/AC @1KHz 50% SOC | <20mΩ |
Max. Continuous Charge Current | 100A |
Max. Continuous Discharge Current | 100A |
Configuration | 16S7P |
Communication | RS485 |
Cells Self-discharge Rate | 3% per month |
Projected Cycle Life ( 25℃) | 10,000 times |
Recommended Depth of Discharge | ≤90% |
Maximum Depth of Discharge | 100% |
Shell Material | Metal & ABS plastic |
Cooling Method | Natural |
Parallel Connection | Up to 10sets |
Monitoring Data | System,voltage,current, temperature,SOC,SOH,cells’ voltage |
COMPLIANCE INFORMATION | |
Safety | IEC62619*1 |
Transport | UN38.3,MSDS |
CE | EN 62133:2013, EN 55032:2015+AC:2016, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013 |
Environmental | RoHS |
Inverters options*2 | Deye,Sungrow,SMA,Growatt,Goodwe |
ENVIRONMENTAL SPECIFICATIONS | |
Environmental Protection | IP20, Indoor |
Operating Humidity | 0~90% RH Non-condensing |
Charge Temperature*2 | -20℃~+60℃ |
Discharge Temperature | -30℃~+60℃ |
Storage Conditions | -20℃~+40℃ 25% ~ 95%RH SOC>30%, one full charge needed per two months |
Remark:
*1 some certificates have not achieved yet. will issue if requested.
*2The inverter brands options for reference,customer need to appoint inverter when pace order if need to be compatible.
MECHANICAL SPECIFICATIONS | |
Part Number | WDLFP-48V10K-W |
Weight | 117Kg |

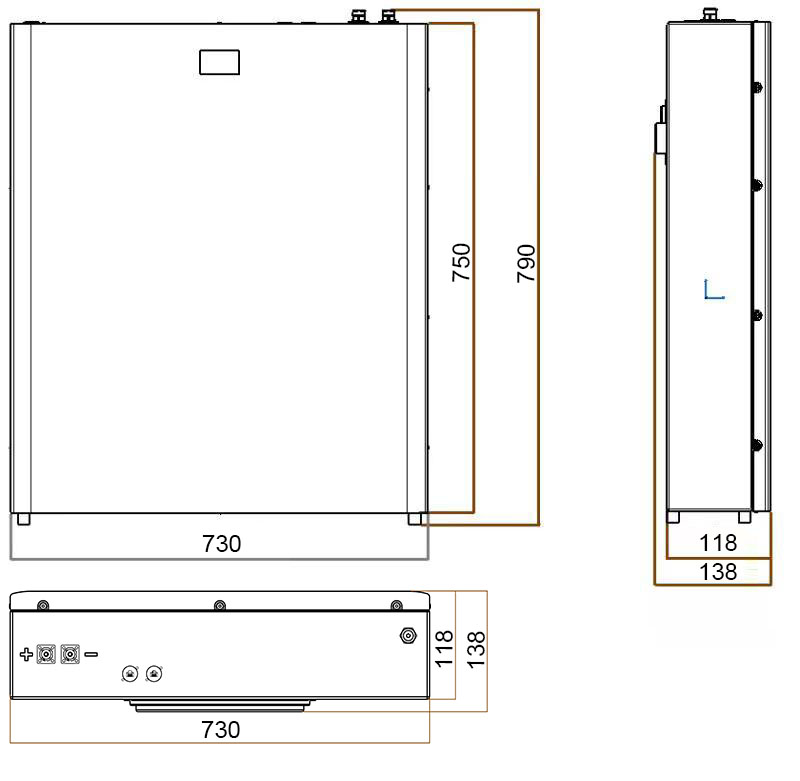

Dimensions(WxHxT) | 730x790x138(mm) |
Mount Options | Wall and ground |
Dimensions and weight differ slightly for each batch. Contact Green Tech for additional information.
