| FEATURES
* LiFePO4 cells * Safest technology * Aluminum alloy shell * Extreme temperature * Highest energy transfer efficiency * Easy to install * Rarely maintenance |  |
Part Number | WDLFP-48V3000-E |
Energy storage | 3.17KWh |
Capacity | 13500F (62Ah) |
Nominal Voltage | 51.2V/DC |
Maximum Charge Voltage | 56.8V/DC |
Discharge Cut-off Voltage | 40V/DC |
ESR/AC @1KHz 50% SOC | <20mΩ |
Max. Continuous Charge Current | 60A |
Max. Continuous Discharge Current | 100A |
Configuration | 16S2P |
Communication | RS485 |
Monitoring Data | System,voltage,current, temperature,SOC,SOH,cells’ voltage |
Projected Cycle Life ( 25℃) | 10,000 times |
Recommended Depth of Discharge | ≤90% |
Maximum Depth of Discharge | 100% |
Shell Material | Metal & ABS plastic |
Cooling Method | Natural |
Series Connection | Option (need to clarify when place order) |
Parallel Connection | Option (need to clarify when place order) |
Series and Parallel Connection | Add controller box (need to clarify when place order) |
COMPLIANCE INFORMATION | |
Safety | UN38.3 |
Transport | UN38.3,MSDS |
CE | EN 62133:2013, EN 55032:2015+AC:2016, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013 |
Environmental | RoHS |
Compatible Inverters | Option |
ENVIRONMENTAL SPECIFICATIONS | |
Environmental Protection | IP20, Indoor |
Operating Humidity | 0~90% RH Non-condensing |
Charge Temperature | 0℃~+45℃ |
Discharge Temperature | -30℃~+60℃ |
Storage Conditions | -20℃~+40℃ 25% ~ 95%RH SOC>30%, one full charge needed per two months |
Remark: some certificates have not achieved yet. will issue if requested.
MECHANICAL SPECIFICATIONS | |
Part Number | WDEF-48V3000-E |
Weight | 28Kg |

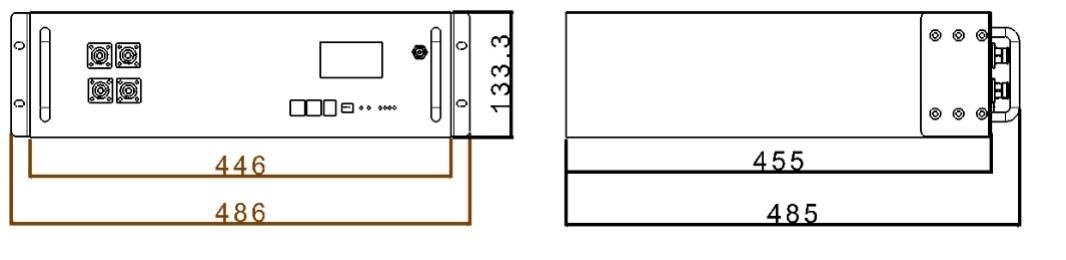

Dimensions(WxDxH) | 486x455x133.5(mm) |

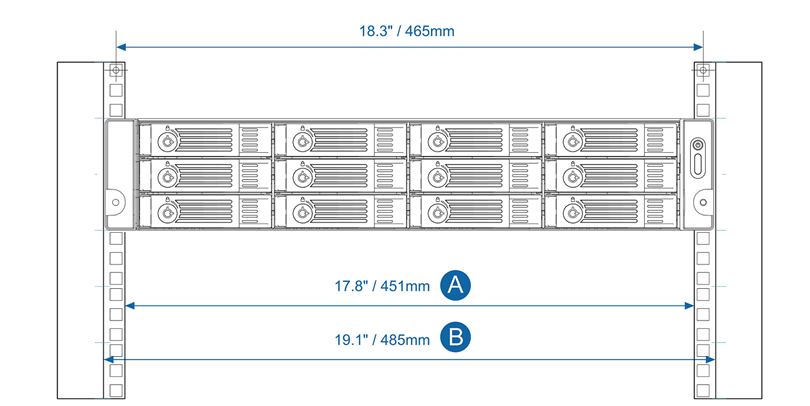

Mount Options | 19”Rack and Shelf |
Dimensions and weight differ slightly for each batch. Contact Green Tech for additional information.
