| FEATURES
* LiFePO4 cells * Safest technology * Ultra long cycle life * Extreme temperature * Highest energy transfer efficiency * Easy to install * Rarely maintenance |  |

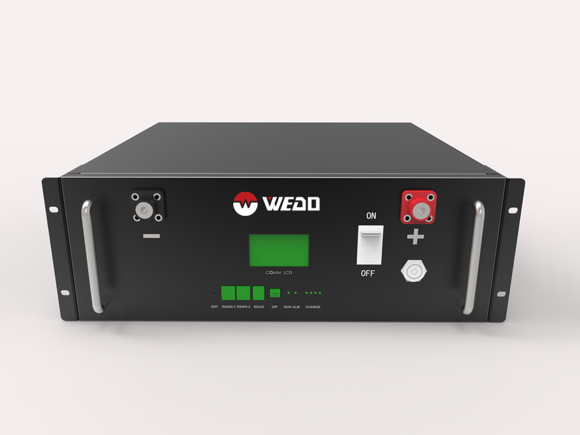

Part Number | WDLFP-48V7600-E |
Energy storage | 7.68KWh |
Nominal Capacity | 33750F (150Ah) |
Nominal Voltage | 51.2V/DC |
Maximum Charge Voltage | 57.6V/DC |
Discharge Cut-off Voltage | 44.8V/DC |
ESR/AC @1KHz 50% SOC | <15mΩ |
Max. Continuous Charge Current | 100A |
Max. Continuous Discharge Current | 100A |
Configuration | 16S5P |
Cooling Method | Natural |
Cells Self-discharge Rate | 2% per month |
Projected Cycle Life ( 25℃) | 10,000 times |
Recommended Depth of Discharge | ≤90% |
Maximum Depth of Discharge | 100% |
Shell Material | Metal & ABS plastic |
Monitoring Data | System voltage,current, temperature,SOC,SOH,cycle,cell’s voltage |
Series Connection | Not allowed |
Parallel Connection | Up to 10sets (if parallel more,add controller box) |
Series-Parallel Connection | Not allowed |
COMPLIANCE INFORMATION | |
Safety | UN38.3 |
Transport | MSDS |
CE | EN 62133:2013, EN 55032:2015+AC:2016, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013 |
Environmental | RoHS |
Compatible Inverters | Deye,Growatt,SMA |
ENVIRONMENTAL SPECIFICATIONS | |
Environmental Protection | Indoor |
Operating Humidity | 0~90% RH Non-condensing |
Charge Temperature | 0℃~+55℃ |
Discharge Temperature | -20℃~+60℃ |
Storage Conditions | -20℃~+40℃ 25% ~ 95%RH SOC>30%, one full charge needed per two months |
MECHANICAL SPECIFICATIONS | |
Part Number | WDEF-48V7600-E |
Weight | 60Kg |
Dimensions(WxDxH) | 480x630x250(mm) |
Mount Options | 19”Rack and Shelf |
Dimensions and weight differ slightly for each batch. Contact Green Tech for additional information.
