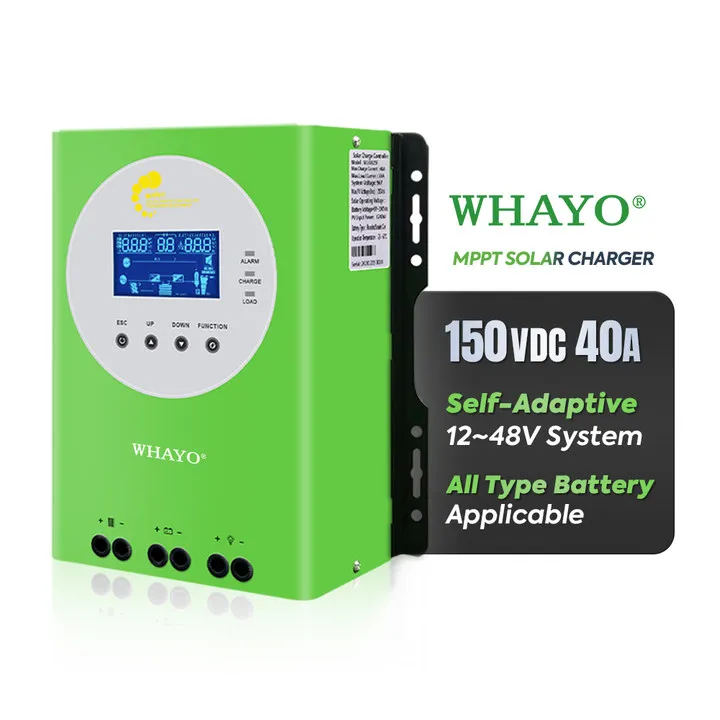

Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller

Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller

  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
Summary
No.1601246094393
More
$75.00
Specifications
Rated Voltage:
12V
24V
48V
Maximum Current:
Other
60A
40A
80A
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller
  • Whayo 40A Mppt Controller 12v Mppt Solar Charge Controller Smarten Mppt Charge Controller

Key attributes

Type
MPPT
Application
Charger Controller, Collector Controller, Solar System Controller
Place of Origin
Anhui, China
Brand Name
Whayo
Model Number
WY-MP40
Work Time (h)
24hours
Max PV Power
2160W
Max PV Voltage
150vdc

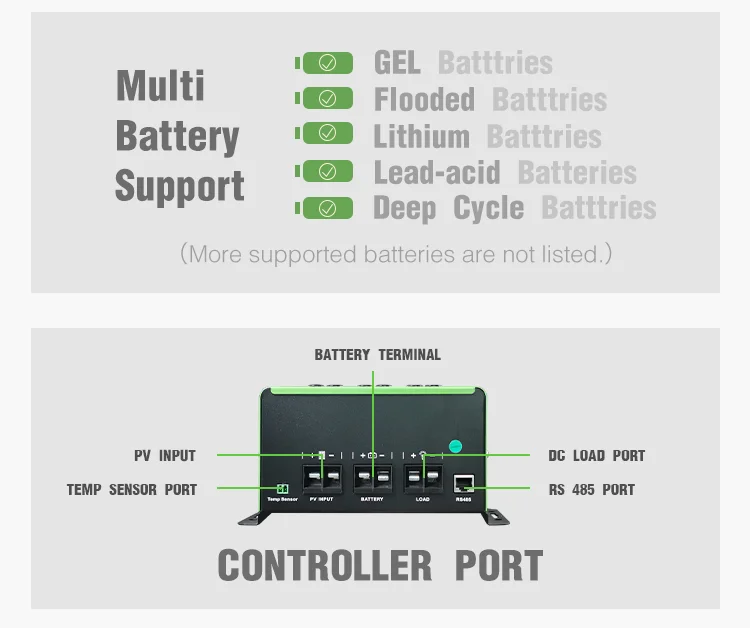

Battery type
Lead acid batter/ lithum battery
MPPT Tracking efficiency
99.5%
Static power
<4W
Protection
Short Circuit
Max PV Power
2160W
Charging method
constant cairent rent foltage, floating charge
Starting time
10s
Display
HD LCD backlight display

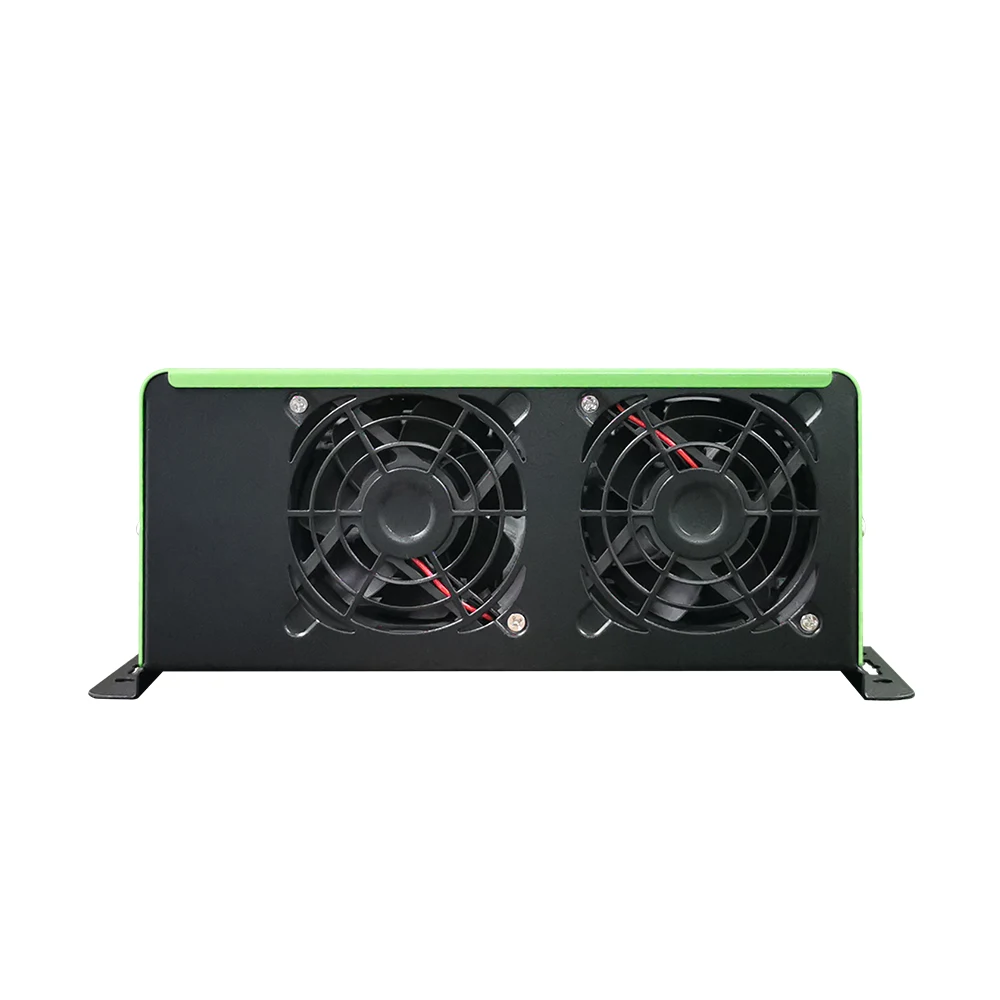

Cooling
fan Cooling
Working Temperature
-20℃~50℃

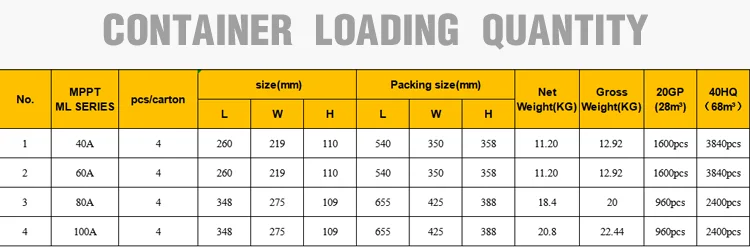

Packaging and delivery

Selling Units
Single item
Single package size
54X35X35 cm
Single gross weight
25.000 KG
Main Products
Product Parameters
Model
40A
60A
System voltage
12V/24V/36V/48V(Adaptive)
Applicable battery type
All type battery adaptive
MPPT Tracking efficiency
≥99.5%
PV input maximum open circuit voltage (VOC)
150VDC
Solar panel rated input power
12V/24/V36/V48V
540W/1080W/2160W
800W/1600W/3200W
Load undervoltage protection
10.5V*N(N stands for batteries number)Parameters can be adjustable
Protections
Input and output over-voltage protection, input and output anti-reverse protection, over-temperature protection, load over-current
protection

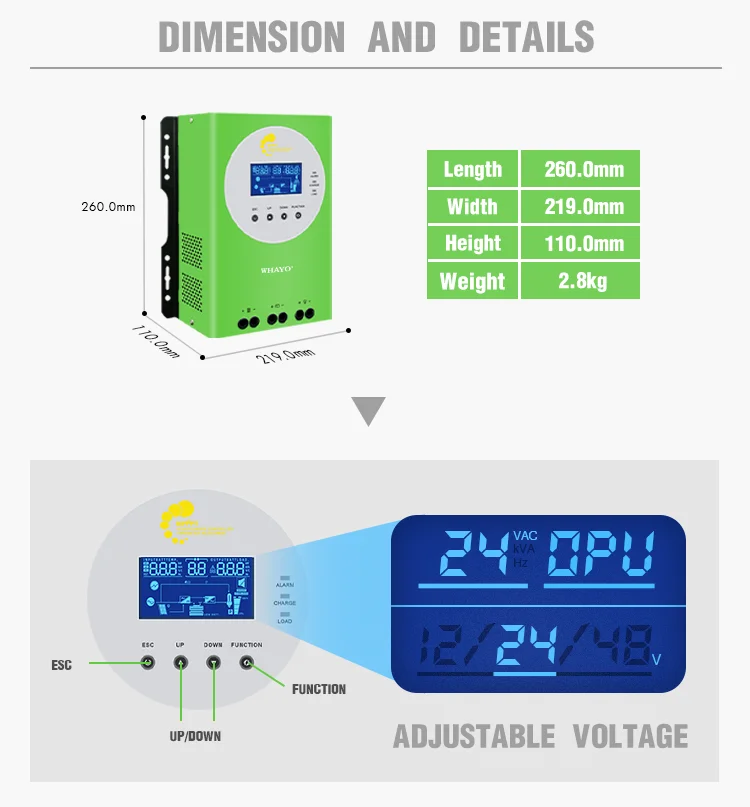

Dimension, L×W×H
219*260*110mm
Net Weight(KG)
2.8KG
3KG
Company Profiles
Whayo Energy Technology Co., Ltd. is a leading enterprise specializing in the research, development, sales, and service of solar panels, solar inverters, solar batteries, solar systems, and energy storage systems. Established in 2008 and located in Hefei ,Anhui Province, China, our company boasts a high-quality R&D and management team, along with advanced production and testing equipment.
With a commitment to providing high-quality energy storage products and services to global customers, we have developed a number of independently patented core technologies. These technologies include preparation methods for key materials such as lithium-ion battery cathode materials, anode materials, electrolytes, separators, and lithium-ion battery pack management systems,supercapacitor energy storage systems, fuel cell storage systems, and other core technologies. These offer significant advantages in improving energy storage product performance, reducing costs, and extending service life, laying a solid technical foundation for our company's sustainable development. Our experienced staff are dedicated to strict quality control and thoughtful customer service, ensuring complete customer satisfaction.
We have obtained CE, TUV, and ISO9001 ,ISO14001 certificates, and our products are sold nationwide and exported to customers in Europe, America, Asia, etc. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, our Customer Service Center is ready to discuss your purchasing requirements. Choose Whayo Energy Technology for innovative and reliable energy storage solutions.
Certifications
FAQ
Q: Are you a factory or trading company?
A: We are a professional manufacturer with our own factory and brand. We provide various OEM/ODM services to customers allover the
world.

Q: Does the shipping way to our country include tax?
A: It depends on the country and the shipping way you choose. Most Asian countries, most European countries, the United States,and
Canada have tax-included shipping channels if needed.

Q: How to proceed with an order?
A: Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly, customer confirms the samples and places a deposit for formal order. Finally, we arrange the
production and then delivery.

Q: What is your package like? Can I have a customized package?
A: We have the factory's current standard packaging, the customized printed logo should meet the buyer's requirements, the
additional cost will be borne by the buyer, please contact us for more details.

Q: Can we visit your factory before placing an order?
A: Of course there is no problem. We welcome you to visit the factory at any time.
