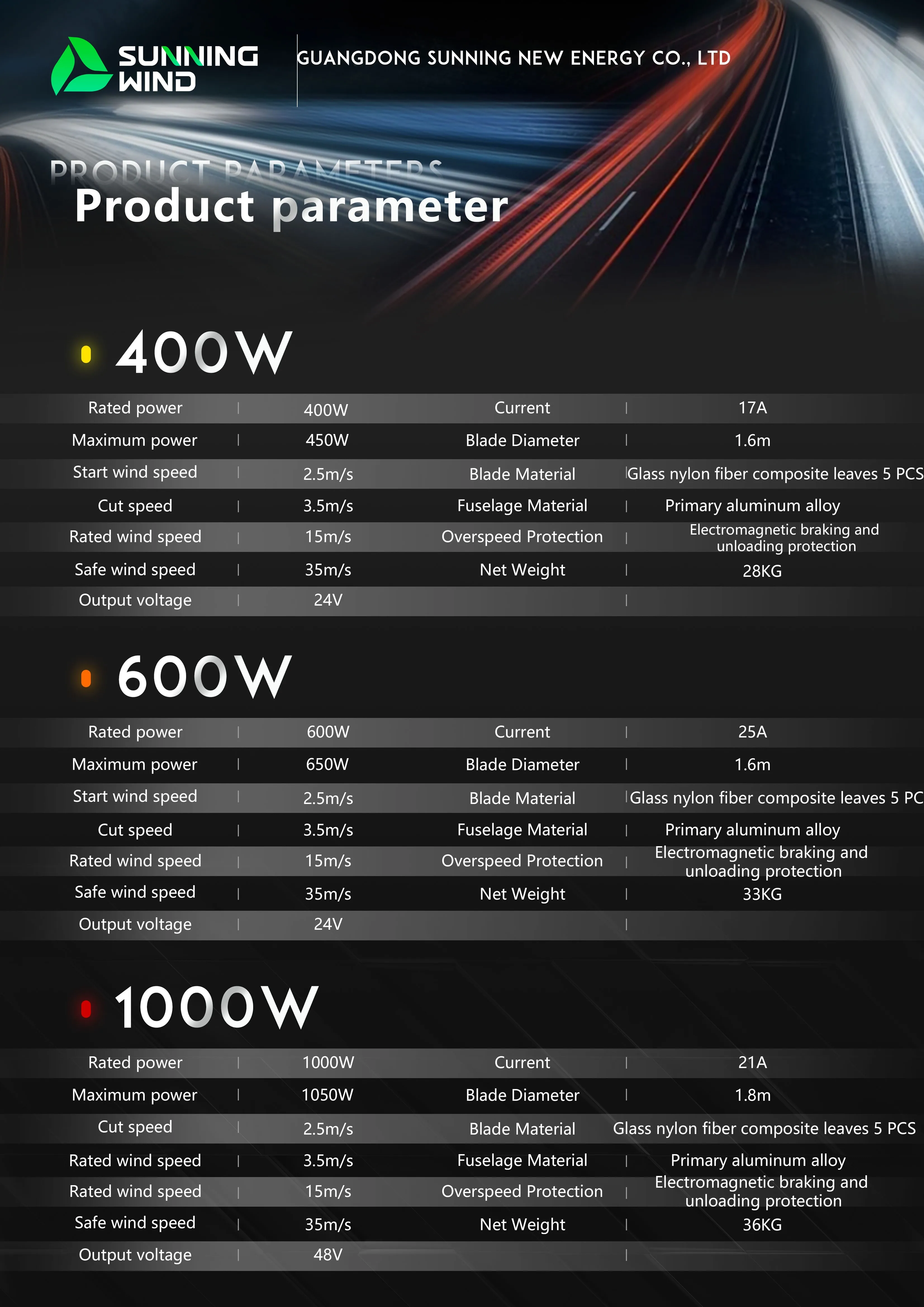

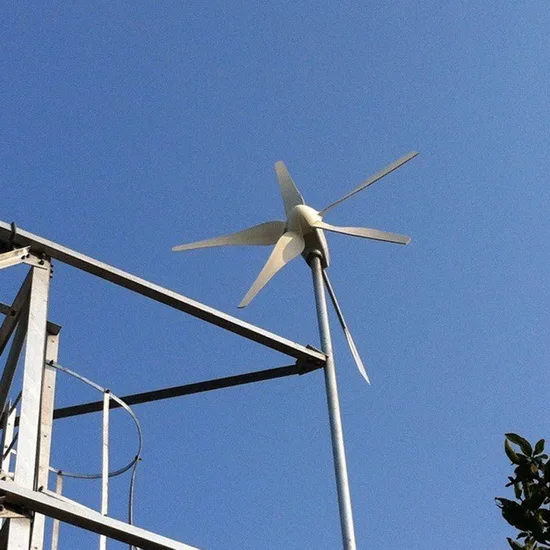

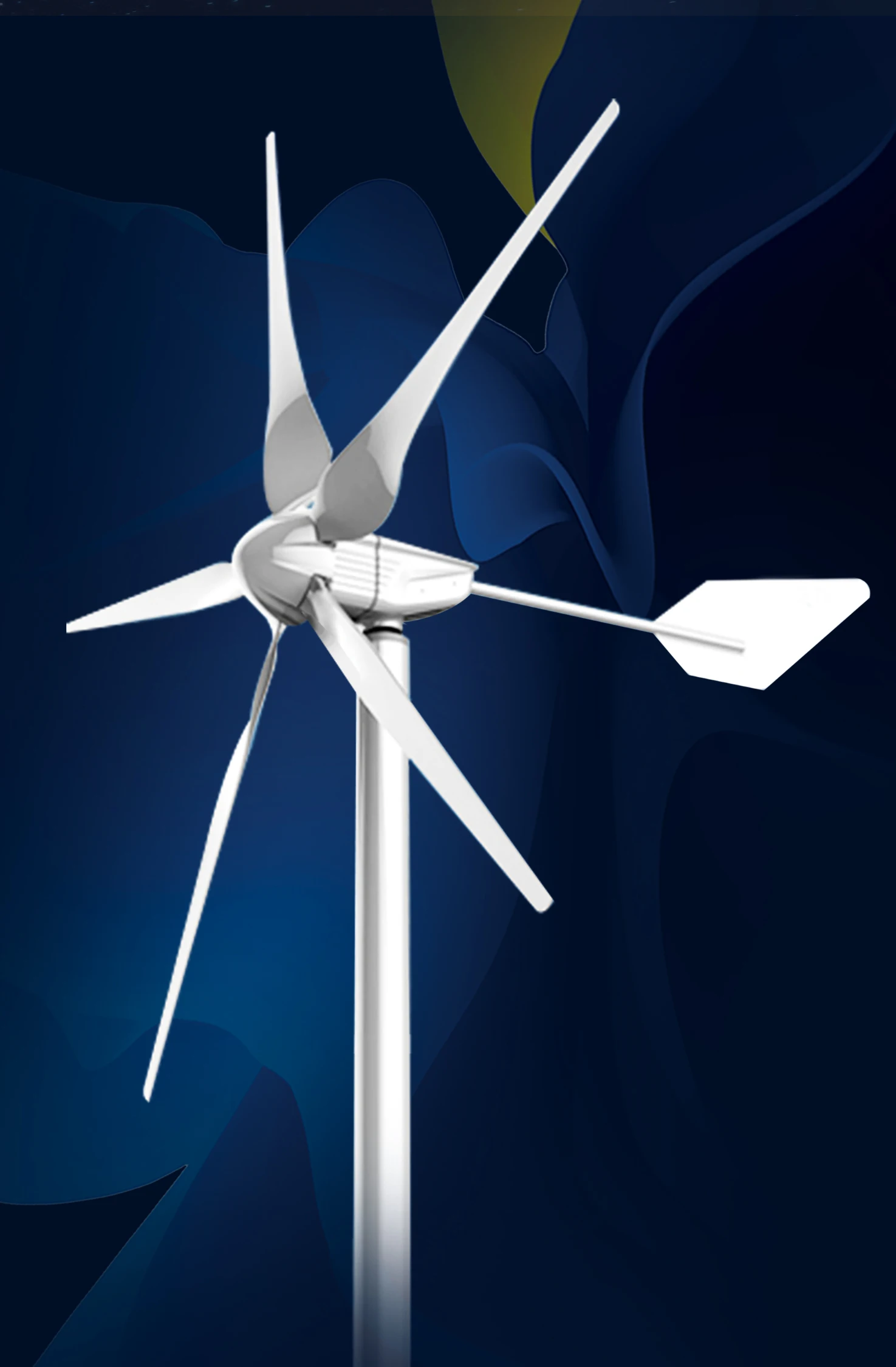

product name | MAX-600W Small Wind turbine |
Rated Power | 600W |
Maximum Power | 650W |
Rated Voltage | 24V |
Rated Current | 25A |
Rated Speed | 650RPM |
Rated wind Speed | 15m/s |
Start-Up Wind Speed | 2.5m/s |
Cut-In Wind Speed | 3.5m/s |
Survival Wind Speed | 35m/s |
Number of Blades | 5 |
Rotor Diameter | 1.6m |
Blade Material | Nylon fibre |
Fuselage Material | Primary aluminum alloy |
Over speed control | Electromagnetic & blade aerodynamic braking |
Generator Type | Brushless 3-phase PMA with high performance Neodymium Magnets |
Controller Type | PWM/MPPT Controller |

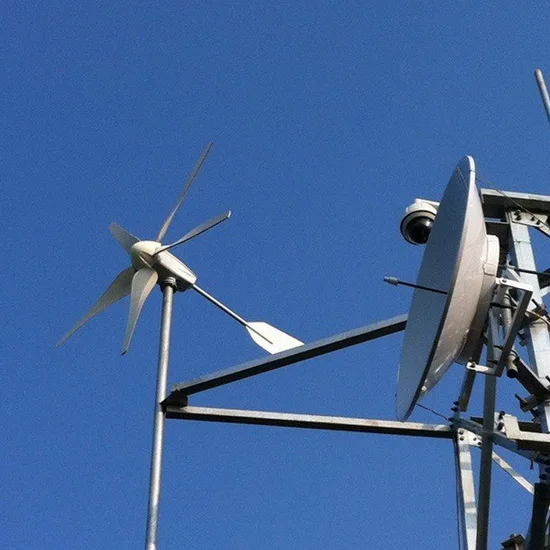

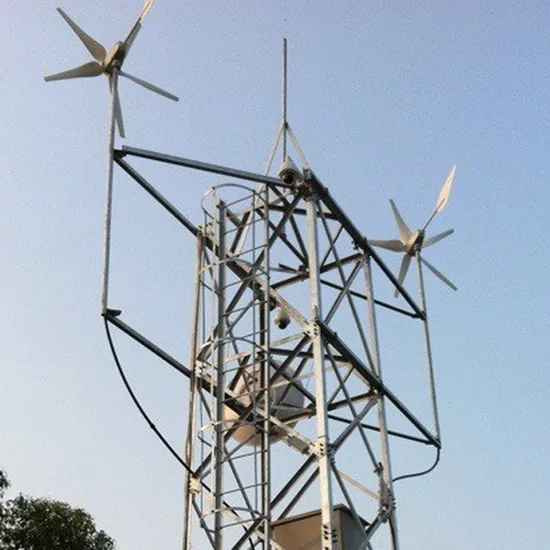

Applications | solar & wind hybrid lighting, on/off-grid power system etc. |
Product Life | 15 years |
Warranty | 1 Year |
Years on Market | 13Years |
Certificate | CE, RoHS, ISO9001:2008, ROHS SAA |
Blade Weight (Single pIece) | 0.25kg |
Wind Wheel Diameter | 1.6m |
Net Weight | 33KG |
Gross W eight | 36KG |
Package size | 1670x540x290 |
