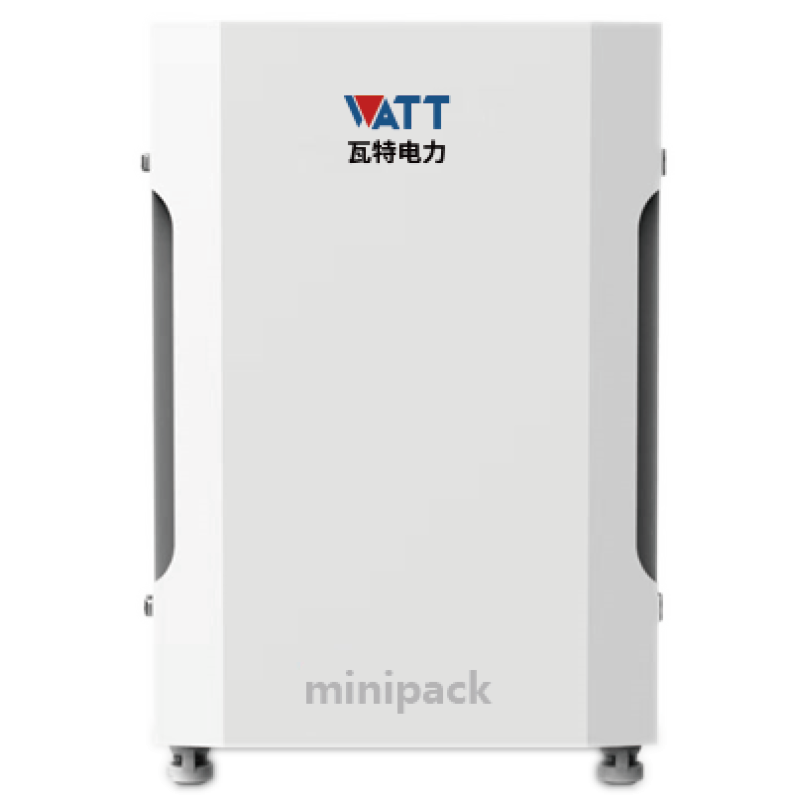

WT-ESS-8kW/20kWh High-Efficiency Energy Storage System AC DC Hybrid Coupling Support 96% Conversion Efficiency Outdoor IP54 20kWh 230V

WT-ESS-8kW/20kWh High-Efficiency Energy Storage System AC DC Hybrid Coupling Support 96% Conversion Efficiency Outdoor IP54 20kWh 230V

  • WT-ESS-8kW/20kWh High-Efficiency Energy Storage System AC DC Hybrid Coupling Support 96% Conversion Efficiency Outdoor IP54 20kWh 230V
  • WT-ESS-8kW/20kWh High-Efficiency Energy Storage System AC DC Hybrid Coupling Support 96% Conversion Efficiency Outdoor IP54 20kWh 230V
Summary
WT-ESS-8kW/20kWh High-Efficiency Energy Storage System delivers 20kWh capacity and 8kW power output with 96% max conversion efficiency. Designed for AC/DC coupling and hybrid energy systems, this outdoor IP54-rated system supports parallel operation for single-phase/three-phase output, ideal for grid balancing, peak shaving, and renewable integration in commercial and industrial applications.More
Specifications
Rated energy:
20kWh
Rated power:
8kW
Rated voltage:
230V
  • WT-ESS-8kW/20kWh High-Efficiency Energy Storage System AC DC Hybrid Coupling Support 96% Conversion Efficiency Outdoor IP54 20kWh 230V
  • Product model: WT-ESS-8kW / 20kWh
  • Rated energy: 20kWh
  • Rated power: 8kW
  • Rated voltage: 230V
  • Rated current: 34.7A
  • Total harmonic distortion rate of power grid: 2%
  • Maximum conversion efficiency: 96%
  • Overload capacity: 300%
  • Cooling system: Air cooling
  • Working environment temperature: -20~40℃
  • Protection level: IP54 (outdoor)
  • Width * Depth * Height: 600*700*1100mm
  • · Efficient integration with smaller volume, quick configuration and use
    · Support the establishment of AC coupling, DC coupling and hybrid energy systems
    · Support multiple parallel devices to form single-phase/three-phase output, and support system expansion
    · With energy storage mixing function, active power compensation and reactive power compensation can be realized at the same time
    · Support phase modulation Settings to improve three-phase unbalance
    · Multi-purpose with multiple working modes
