Product Advantage

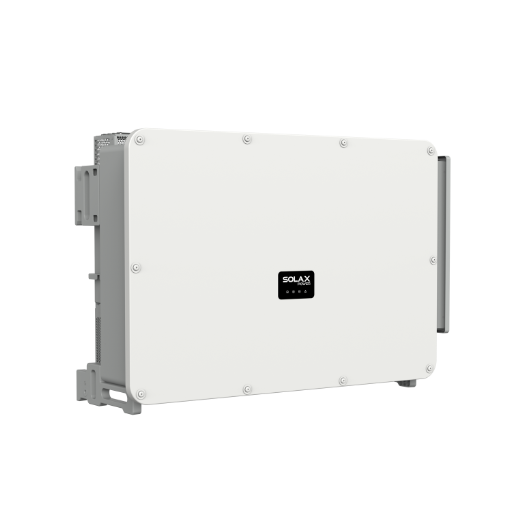

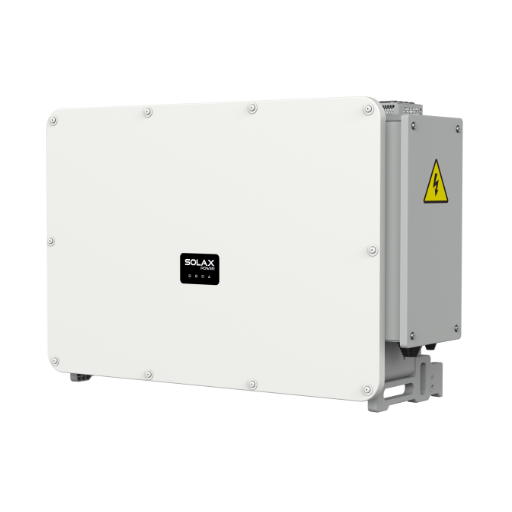

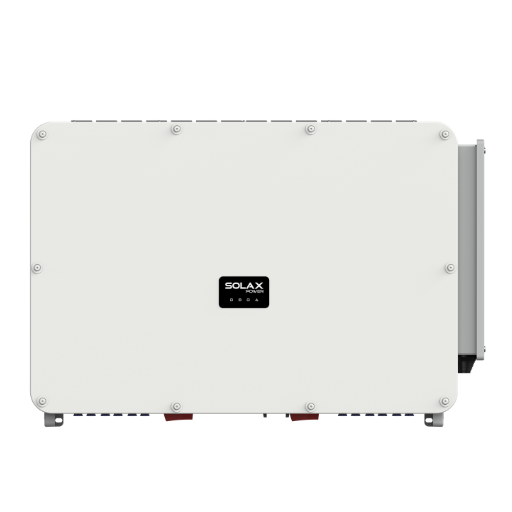

The X3-FORTH PLUS delivers up to 99% efficiency with 200% PV oversizing. Supporting 6 MPPTs and up to 65A per MPPT, it enables precise, high-power input management. Operating from -25°C to +60°C, it guarantees stable performance in demanding conditions.
Intelligent Design
- Fan self-cleaning function for easier maintenance
- Night-time SVG voltage regulation support
- Remote settings and upgrades
- 24-hour monitoring
High Efficiency
- Up to 98.6% efficiency
- 200% oversizing
- 180~1000V, up to 65A per MPPT
- Maintains full power up to 50°C, with operation range from -25°C to 60°C
Flexible Adaptability
- 6 MPPTs, 4 strings per MPPT for precise power
- Reliable up to 5000m altitude
- Power line communication (PLC) (optional)*
- Built-in Anti-PID protection (optional)*
Assured Safety
- IP66 ingress protection
- AFCI support (optional)
- AC terminal over temperature detection
- Automatic tripping DC switch
- Type II SPD on AC & DC side
