Product Advantage

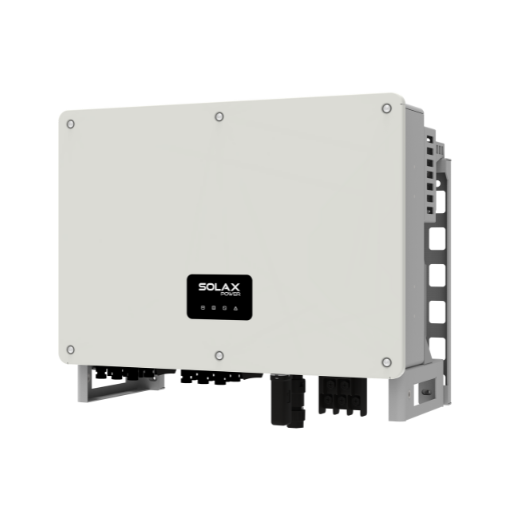

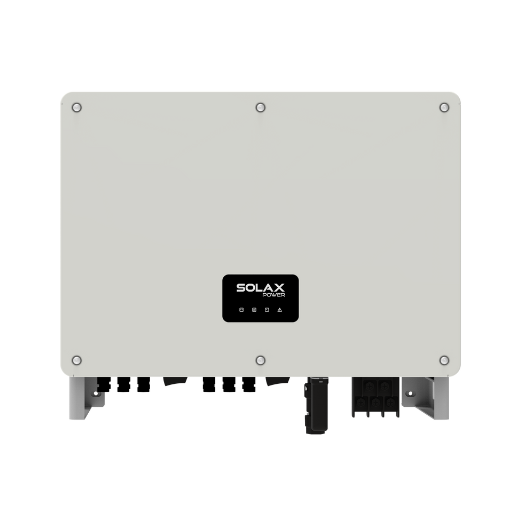

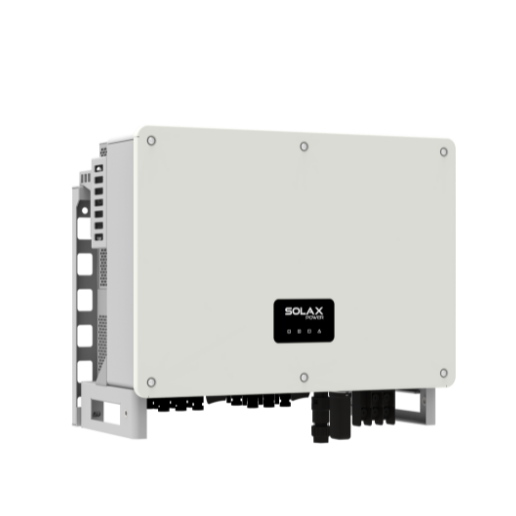

Delivering up to 98% efficiency, the X3-MEGA G2 supports 150% PV oversizing and 110% AC overloading. A wide MPPT voltage range of 180–1000Vdc and 32A per tracker maximize solar energy yield. Advanced I-V curve diagnostics and night-time reactive power compensation further enhance system performance and grid stability, making it ideal for high-output solar installations.
Flexible Adaptability
- Built-in export power control
- Remote setting and upgrading
- Aluminium AC cable connection available
- Max. 6 MPPTs, 2 strings per MPP tracker
High Efficiency
- Up to 98.4% efficiency
- 32A per MPP tracker
- 180~1000Vdc MPPT voltage range
- 150% PV oversizing, 110% overloading output
Assured Safety
- IP66 protection
- Type II SPD on AC&DC side (Optional)
- Smart string current monitoring
- 24 hours operation monitoring
Intelligent Design
- Night-time reactive power compensation
- Smart air cooling enhances fan longevity
- Heat dissipation reduces system weight & size by over 10%
- I-V Curve diagnosis
Product Parameters
X3-MGA-60K-G2
| Max. recommended PV array power | 90 kWp |
| MPPT voltage range | 180 ~ 1000 V |
| No. of MPP trackers / strings per MPP tracker | 6 / 2 |
| Max. input current per MPPT | 32 A |
| Rated output power | 60 kW |
| Nominal AC voltage | 3 / (N) / PE, 220 / 380 V;3 / (N) / PE, 230 / 400 V |
| Ingress protection | IP66 |
| Dimensions (W /H / D) | 630 × 521 × 286 mm |
| Net Weight | 45.5 kg |
X3-MGA-50K-G2
| Max. recommended PV array power | 75 kWp |
| MPPT voltage range | 180 ~ 1000 V |
| No. of MPP trackers / strings per MPP tracker | 5 / 2 |
| Max. input current per MPPT | 32 A |
| Rated output power | 50 kW |
| Nominal AC voltage | 3 / (N) / PE, 220 / 380 V;3 / (N) / PE, 230 / 400 V |
| Ingress protection | IP66 |
| Dimensions (W /H / D) | 630 × 521 × 286 mm |
| Net Weight | 44.5 kg |
X3-MGA-40K-G2
| Max. recommended PV array power | 60 kWp |
| MPPT voltage range | 180 ~ 1000 V |
| No. of MPP trackers / strings per MPP tracker | 4 / 2 |
| Max. input current per MPPT | 32 A |
| Rated output power | 40 kW |
| Nominal AC voltage | 3 / (N) / PE, 220 / 380 V;3 / (N) / PE, 230 / 400 V |
| Ingress protection | IP66 |
| Dimensions (W /H / D) | 630 × 521 × 286 mm |
| Net Weight | 44.0 kg |
